Automatic chewing gum production line

      This fully-automatic chewing gum production line consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. It can produce different shapes of chewing gum, such as Circular shape,Ball shape,square, rectangular, tablet etc. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing chewing gum candy.

Process flow chart of chewing gum production line

    mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine

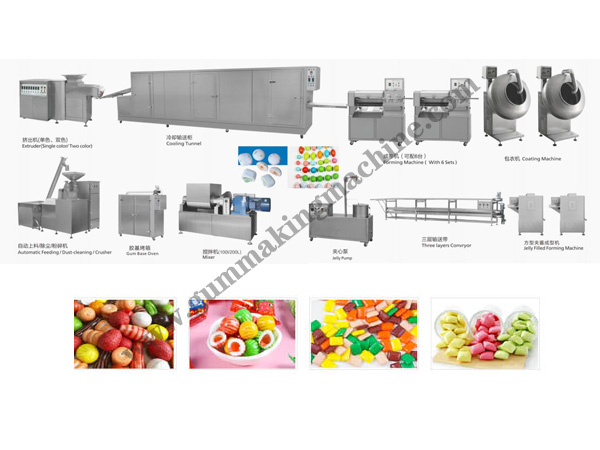

Central-filling Ball chewing gum production line

Central-filling Ball chewing gum production line is composed by mixer, extruder, cooling tunnel/3 layers conveyor, forming machine (6 sets), coating machine, jelly filled forming machine and gum base oven. It can be produced hollow, powder filling or jelly filling candy in the shapes of balls, strawberry, oval, column, and so on.

Process flow chart of Round Bubble Gum Production Line

mixer-extruder-cooling tunnel/3 layers conveyor-forming machine-coating machine-jelly filled forming machine-gum base oven

Main Technical Parameters For Production Line

Capacity:400-650(kg/h)

 Diameter of candy:10-25 mm

Dimension:15000x4000x1500 mm

Gross power:82 kw

Power supply:380V

Gross weight:8850 kg

 Automatic square chewing gum production line

Main Performance

Automatic Bubble Gum Production Line is an automatic production line integrates forming, cutting and packing for square chewing gum,square shapes of tablet chewing gum, rectangle chewing gum,circular chewing gum,filled chewing gum that. It takes the advantages of high production efficiency and low defect rate. It can produce all kinds of shapes and specifications products as customers* requirement. For example, chewing gum and square shapes of tablet, rectangle and circular with center Ailed, colors filled and so on.

Process flow chart of Automatic chewing gum Production Line

Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven

 Main Technical Parameters For Production Line

Capacity:750-850(kg/h)

Power Supply:380V

Gross Power:143 kw

Dimension:17300X5500X1800 mm

Adjustable Range for Candy:18-80 mm

Gross Weight:15000 kg

Irregular shape Chewing Gum Production Line

Parameters

Capacity:150~300kg/h

100L Mixer:power:7.5kW, Dimensions:1900x660x1200mm,  weight:1200kg

200L Mixer:power:18.5kW, Dimensions:2250x950x1550mm, weight:2000kg

Pressing machine:power:5.5kW, Dimensions:6200x1000x1500mm.weight:3000kg

The Irregular shape Chewing Gum Production Line main consists of mixer, extruder, forming machine, cooling machine and coating pan.

Automatic xylitol chewing gum production line

This fully-automatic xylitol chewing gum production line consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing xylitol chewing gum candy.

Process flow chart of xylitol chewing gum Production Line

mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine

Main Technical Parameters For Production Line

Capacity:500-600 (kg/h)

Adjustable range for candy:Bean Shape ：6mm-22mm;Rectangle Shape ：6mm-30mm,Circular shape:6mm-22mm

Dimension:22000x1800x1750 mm

Gross power:75 kw

Power supply:380V/50HZ 200V-240V/60HZ

Gross weight:11000 kg
