Automatic Bubble Gum Production Line

Main Performance

Automatic Bubble Gum Production Line is an automatic production line integrates forming, cutting and packing for cream candy, bubble gum and toffee that. It takes the advantages of high production efficiency and low defect rate. It can produce all kinds of shapes and specifications products as customers  requirement. For example, chewing gum and Sugus shapes of tablet, rectangle and circular with center Ailed, colors filled and so on.

Process flow chart of Automatic Bubble Gum Production Line

Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven

Main Technical Parameters For Production Line

Capacity:750-850(kg/h)

Power Supply:380V

Gross Power:143 kw

Dimension:17300X5500X1800 mm

Adjustable Range for Candy:18-80 mm

Gross Weight:15000 kg

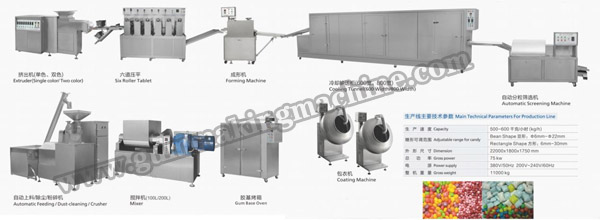

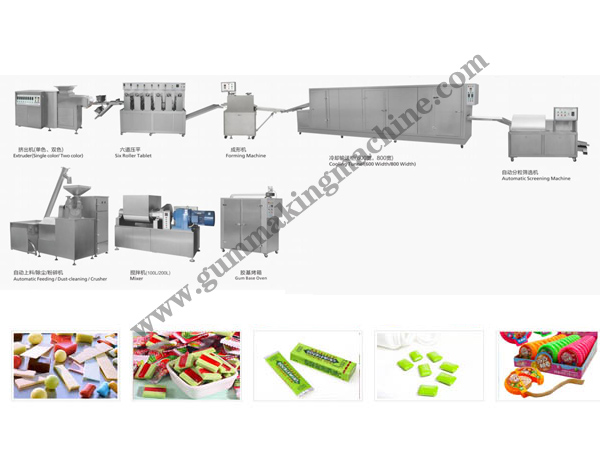

Special Shape bubble gum production line

This production line is suitable for producing Special Shape bubble gum candy. This fully-automatic production line consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. It can produce different shapes of candy, such as square, rectangular, tablet etc. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing Special Shape bubble gum candy.

Process flow chart of Shaped bubble gum Production Line

mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine

Main Technical Parameters For Production Line

Capacity:500-600 (kg/h)

Adjustable range for candy:Bean Shape：6mm-22mm;Rectangle Shape ：6mm-30mm

Dimension:22000x1800x1750 mm

Gross power:75 kw

Power supply:380V/50HZ 200V-240V/60HZ

Gross weight:11000 kg

Round bubble gum production line(Ball bubble gum production line)

It is suitable for producing round bubble gum with all kinds of shaped. This production line is composed by mixer, extruder, cooling tunnel/3 layers conveyor, forming machine (6 sets), coating machine, jelly filled forming machine and gum base oven. It can be produced hollow, powder filling or jelly filling candy in the shapes of balls, strawberry, oval, column, and so on.

Process flow chart of Round Bubble Gum Production Line

mixer-extruder-cooling tunnel/3 layers conveyor-forming machine-coating machine-jelly filled forming machine-gum base oven

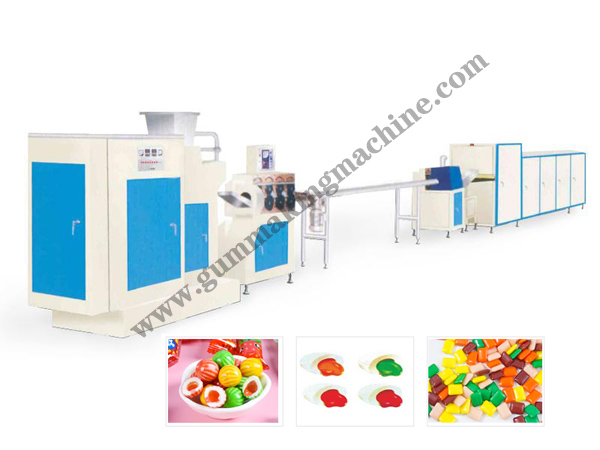

Center Filled Bubble Gum Production Line (Center Fresh)

Parameters

Capacity：250 ~ 300kg/h

Total power:24kW

Shell dimension:11.2mx 1.5m x 2m

Total weight:7800kg

This line is designed for producing central filled bubble gum or center filled soft chewy candy as per the design of the candy shape. This line has an excellent reliable performance and changeable candy style, such as soft Bubble Gum and toffee candy, chewy candy etc.

characteristic

Vacuum boiling sugar and inflatable stirring automatic control alternately;

Unique design of inflatable stirring device to ensure the quality of products;

Production capacity up to 300kg per hour;

Synchronous automatic control of sandwich/extrusion/strip;

Chain forming can complete the production of different shapes of milk candy online;

Can produce ordinary Bubble Gum, sandwich milk candy, toffee, etc.;

Process flow chart of Automatic Bubble Gum Production Line

Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven
